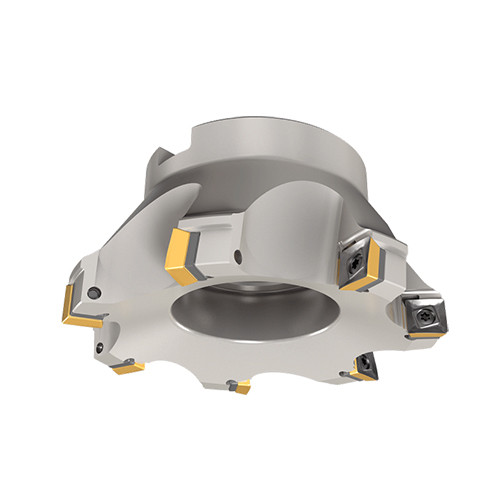

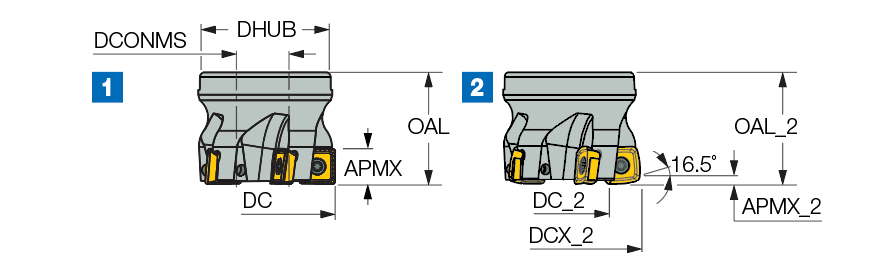

F90SD D 50-22-CP12
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 11.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills Carrying S/QDM# 12... inserts (Japanese standard). | Country of Origin | Israel |
Shipping Info
Package Weight
1.0210
Related Documentation
Cutter diameter 80-200 mm with 1205..inserts - use TSD 1205N seats. Optional: 12T3..inserts with TSD 12T3N seats.
