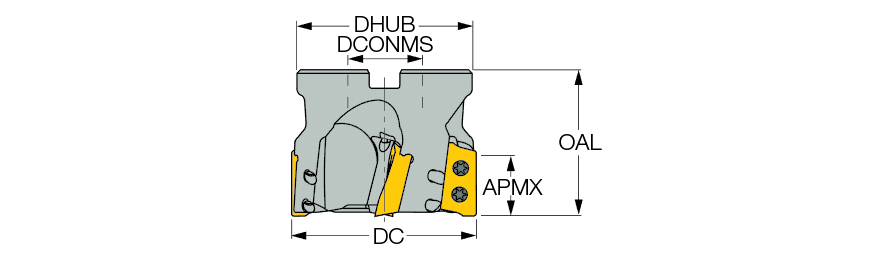

HP F90AT D63-5-27-19
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HP AD.. 1906... long edged inserts. | Country of Origin | IL |
| Remarks | Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both. |
Shipping Info
Package Weight
1.8080
