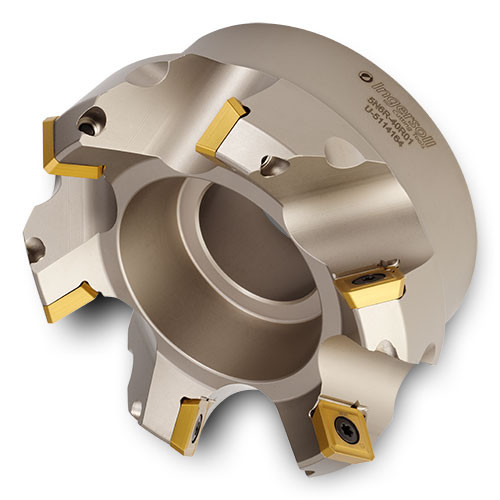

5N6R-60R01
Indexable Face Mill; 6.74″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.41″ LOC ; 8 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 6.74″ | Arbor Style | A |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.74″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.41″ | Application | | Chamfering | Facing | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.023
