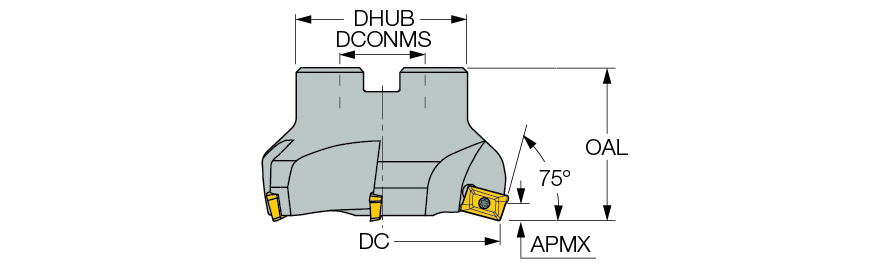

F75A D63-22-M
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 7 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 70°-75° Facemills |
Product Features
| Family Description | HELIMILL, 75° face mills with AD..-1505... inserts. | Country of Origin | IL |
| Remarks | Thinner insert ADM. 1503..mounted on TSP-15R seat. |
Shipping Info
Package Weight
1.3890
