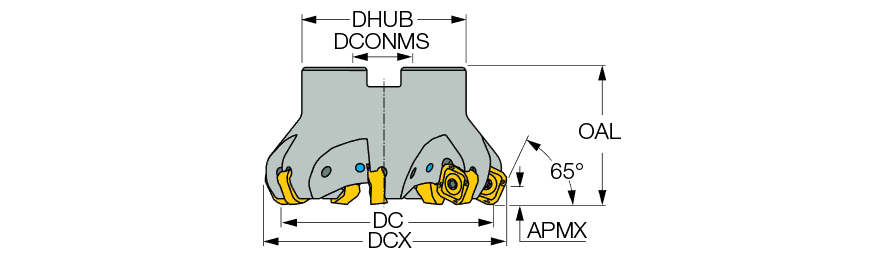

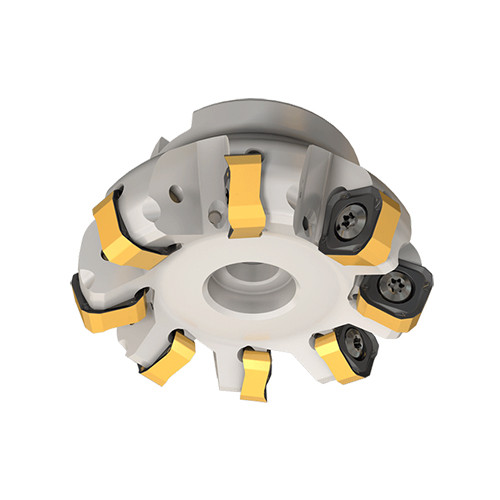

S865 FSN D063-08-22-R13
Indexable Face Mill; 72.7 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 6 mm LOC ; 8 Inserts ; 65 Degrees
| Cutting Diameter (DC/DCX) | 72.7 mm | Master Insert Identification (MIID) | S865 SNMU1305ZNTR-MM |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 72.7 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 60°-65° Facemills |
| Arbor Style | A |
Product Features
| Family Description | HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 65° lead angle minimizes burrs and edge chipping for cast iron applications. | Country of Origin | Israel |
Shipping Info
Package Weight
1.477
