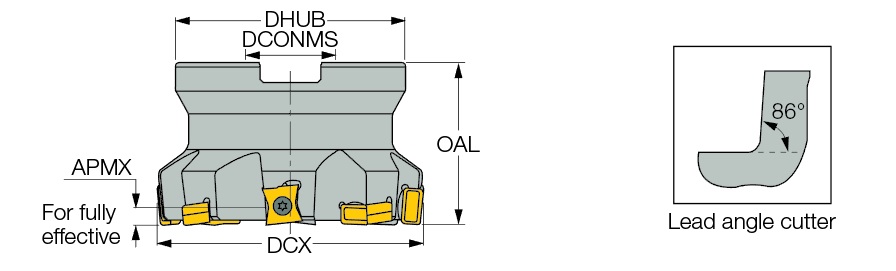

F86LNX D100-08-32-R-N11
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.827″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 86° face mills carrying all 8 cutting edges of LN..1106... tangentially clamped inserts. | Country of Origin | Israel |

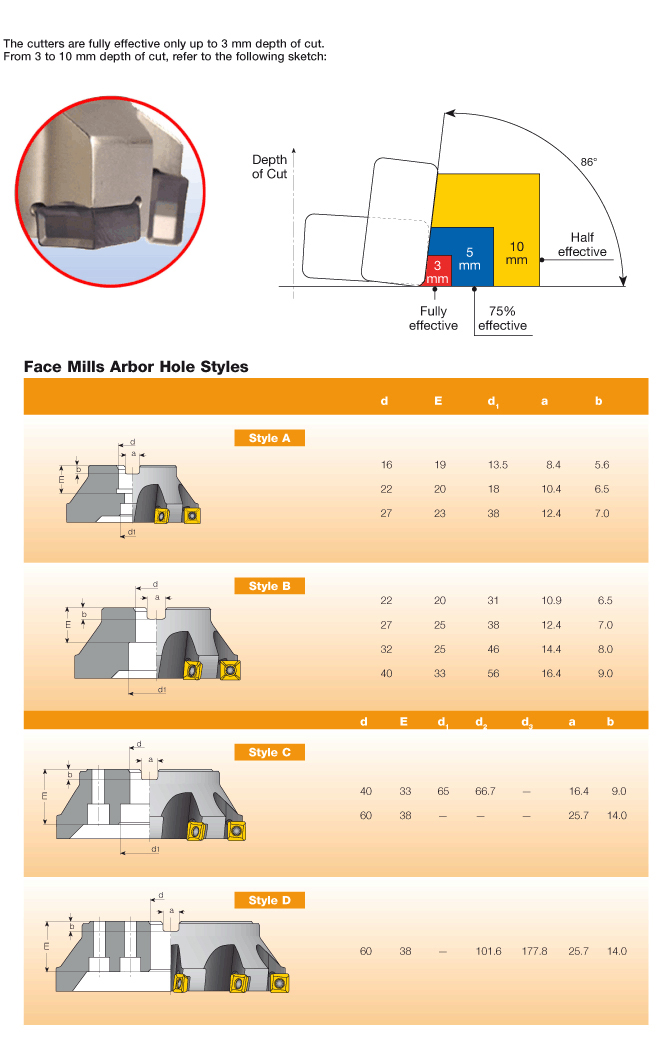

| Remarks | For ap>3.0 mm, zeff is half the number indicated in the table LNAR 1106 inserts should not be used on these cutters F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1106.. inserts–4 R.H. in the peripheral position and 4 L.H. in the frontal position Feed should be limited to 0.25 mm/tooth. |
Shipping Info
Package Weight
3.6850
