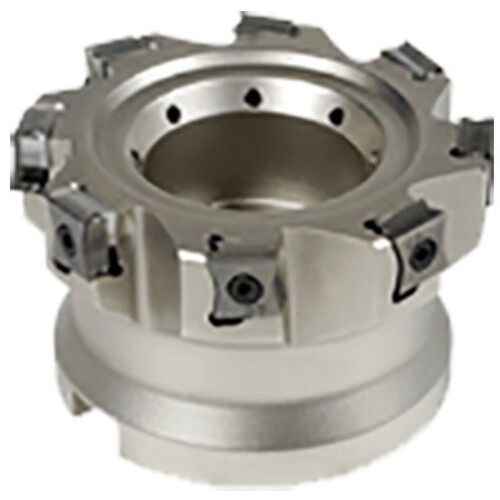

F90LN D160-12-40-R-N11
Indexable Face Mill; 160 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 10 mm Max Depth ; 12 Inserts ; 90 Degrees

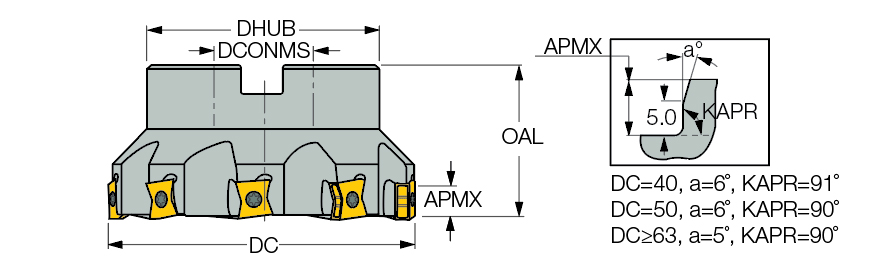

| Cutting Diameter (DC/DCX) | 160 mm | Master Insert Identification (MIID) | LNMT 1106PN-N MM |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 12 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 120 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

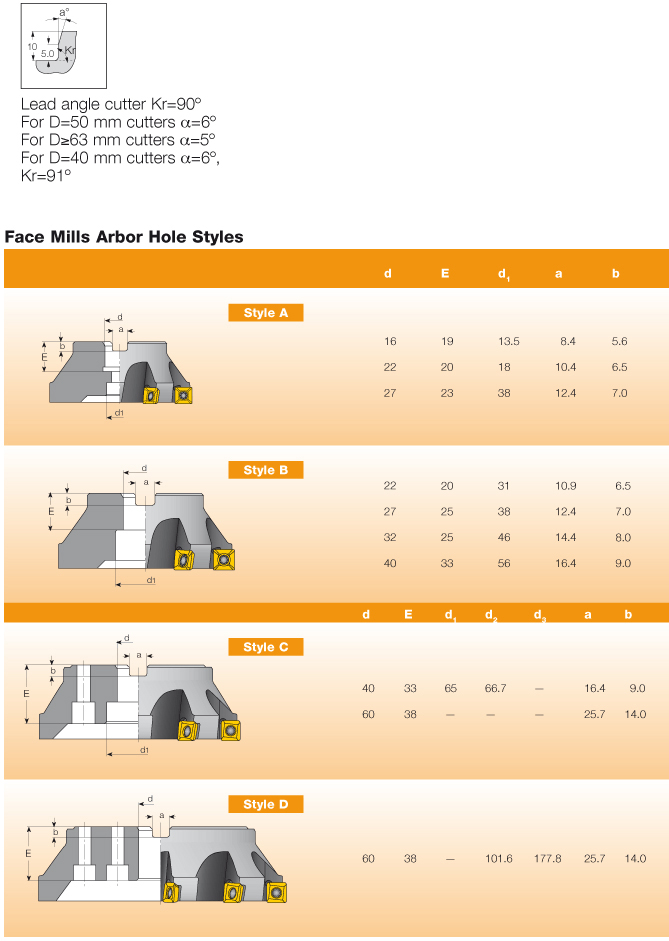

| Arbor Style | C | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying LN..1106... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For profile of machined wall, click on "More Info". |
Shipping Info
Package Weight
10.342
