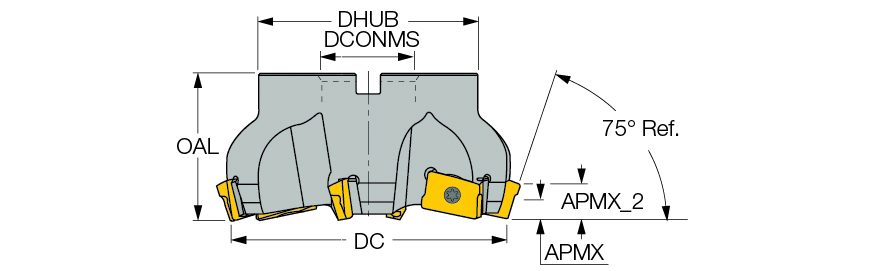

3M F75AX D100-6-32-20
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 7.3 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 70°-75° Facemills |
Product Features
| Family Description | MILL2000, Heavy duty 75° face mills with 3M AXKT 2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
Shipping Info
Package Weight
3.7590
