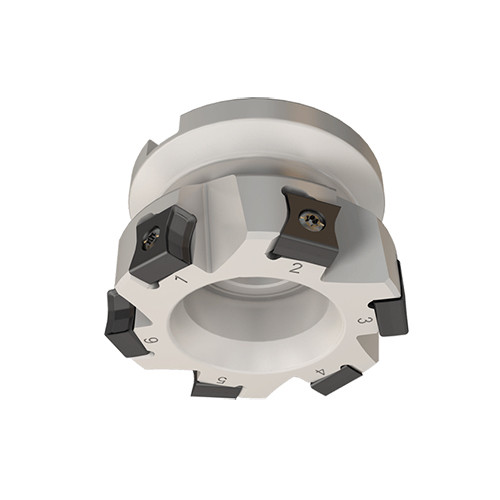

F90LN D125-10-40-R-N11
Indexable Face Mill; 125 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 10 mm LOC ; 10 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 125 mm | Master Insert Identification (MIID) | LNMT 1106PN-N MM |
| Cutting Diameter (DC) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 95 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying LN..1106... tangentially clamped inserts | Country of Origin | Israel |
| Remarks | For profile of machined wall, click on More Info |
Shipping Info
Package Weight
6.508
