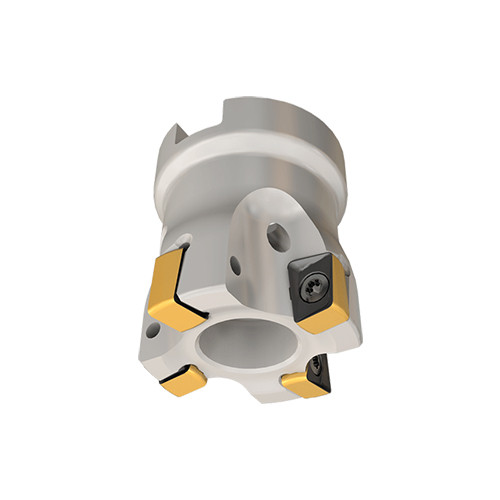

H490 F90AX D063-9-22-09
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 8 mm LOC ; 9 Inserts ; 90 Degrees

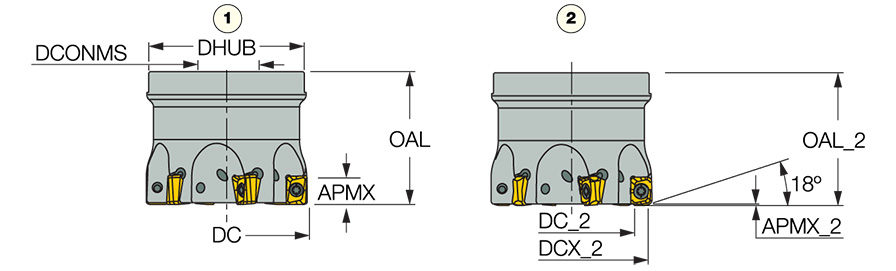

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | H490 ANCX 090404PDR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Facing | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 60 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges. | Country of Origin | Israel |
| Remarks | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX 0904R12T-FF insert is used When assembled the H490 ANKX 0904R12T-FF insert, tool diameter enlarges by 0.1 mm |
Shipping Info
Package Weight
1.801
