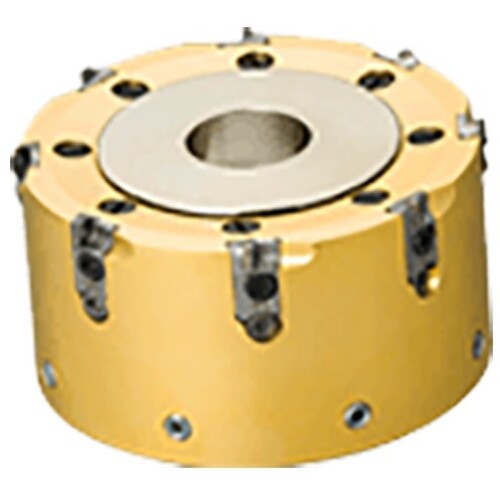

SPM D080-06-27R-CA
Indexable Face Mill; 82 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 2.5 mm Max Depth ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 82 mm | Master Insert Identification (MIID) | CA-SPM-75RM |
| Cutting Diameter (DC) | 82 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 80 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | Face mills with adjustable cartridges for high speed machining of aluminum alloys, cast iron and carbon fiber. Lightweight body, user-friendly adjustment system, easy axial edge positioning for up to 0.002 mm accuracy, convenient balancing. | Country of Origin | Israel |
Shipping Info
Package Weight
1.876
