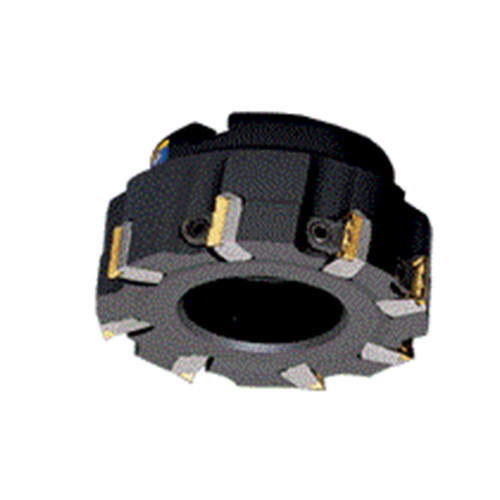

F90 D100-32
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 18 mm LOC ; 8 Inserts ; 90 Degrees

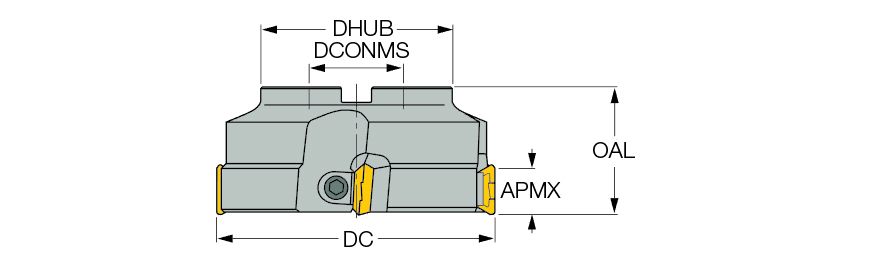

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | TPKN 2204PDFR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 70 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying TPKN/R inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.935
