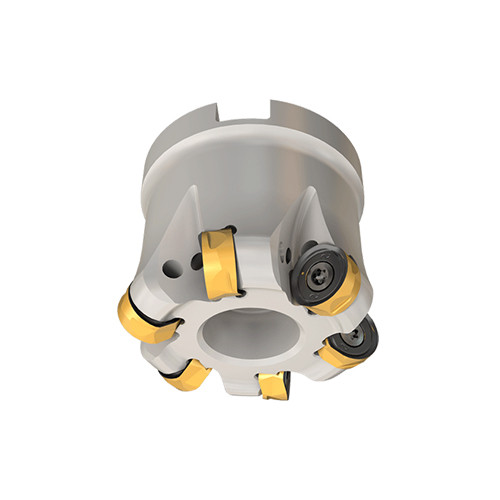

H400 FR D040-06-16-10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 35 mm OAL × 7.5 mm LOC ; 6 Inserts

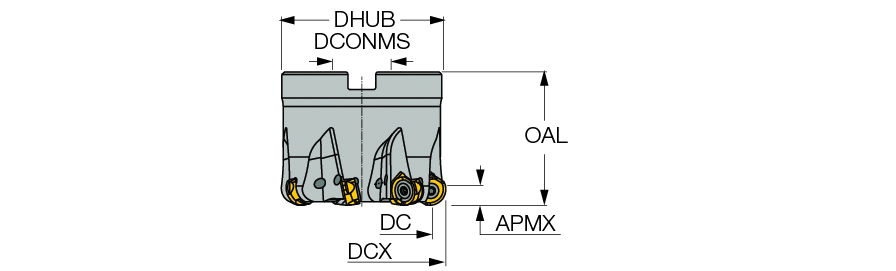

| Cutting Diameter (DC/DCX) | 40 mm | Arbor Style | A |
| Cutting Diameter (DC) | 30 mm | Master Insert Identification (MIID) | H400 RNHU 1004-ML |
| Cutting Diameter Maximum (DCX) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 7.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 35 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 37.6 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with four 5 mm radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
0.622
