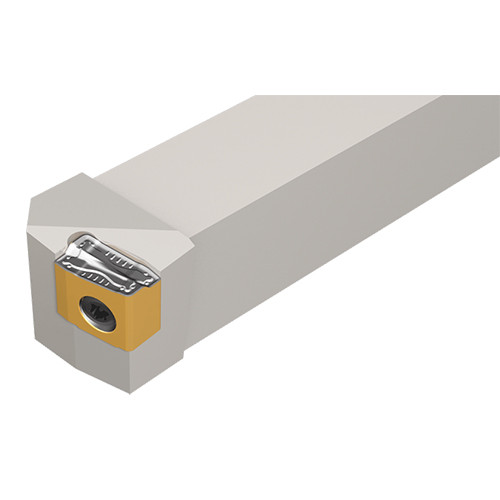

SLLNL 3232P-16HF

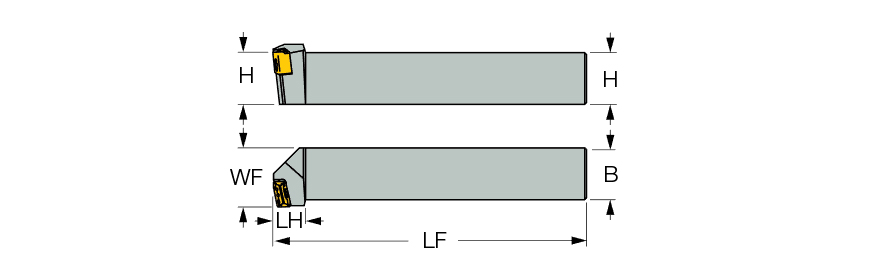

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | 7.7 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Cutting Position | External |
| Functional Width (WF) | 37.2 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1608R/L-HF | Style | SCLCL08-3A |
| Application | | Ext. Tangential 12° Approach | Ext. Tangential 78° Face Approach | | Insert Style | 170mm |
Product Features
| Family Description | FEEDTURN screw clamped toolholders for Fast Metal Removal in longitudinal turning: F max=2.4mm/rev, Ap max= 2.4mm. | Country of Origin | Israel |
Shipping Info
Package Weight
3.049
