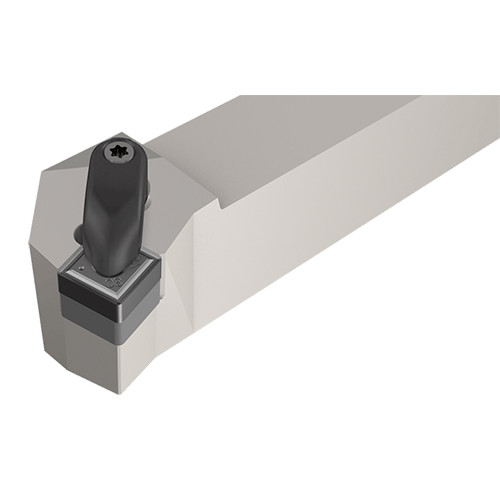

DSKNL 2525M-12
Turning Toolholder; 153.05 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 31 mm LH ; Left Hand ; Steel

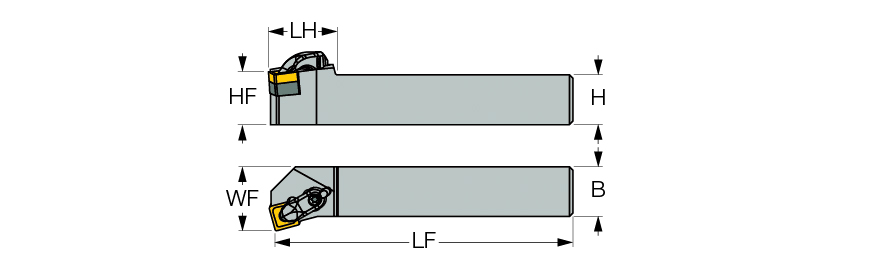

| Shank Height (H) | 25 mm | Application | | Ext. 90° Square 75° Face Appr. | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -4.4 Degrees |
| Overall Length (OAL) | 153.05 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 31 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 1204 | Insert Style | 150mm |
Product Features
| Family Description | 75° entrering angle R-Clamp external turning tools carrying ISO negative SNMG inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.764
