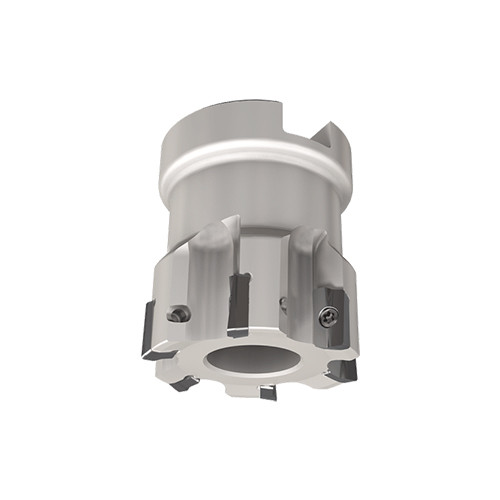

HP F90AN D32-06-16-07
Indexable Face Mill; 32 mm Dia. × 16 mm Shank Dia. × 35 mm OAL × 7.7 mm LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | HP ANKT 0702 PN-R |
| Cutting Diameter (DC) | 32 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 7.7 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Counter Boring | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 35 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 30.4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIPLUS, 90° fine pitch face mills carrying HP ANKT 0702.. inserts. | Country of Origin | Israel |
| Remarks | Insert tightening torque: 0.62 Nxm |
Shipping Info
Package Weight
0.505
