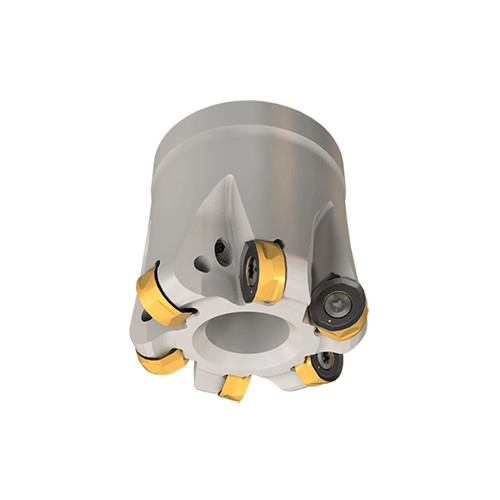

H400 FR D080-08-27-12
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 8.7 mm LOC ; 8 Inserts

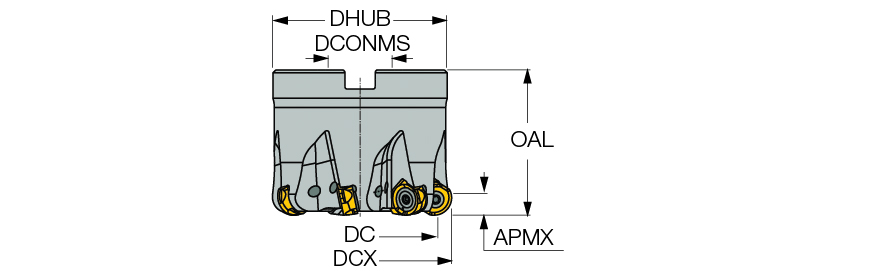

| Cutting Diameter (DC/DCX) | 80 mm | Arbor Style | A |
| Cutting Diameter (DC) | 68 mm | Master Insert Identification (MIID) | H400 RNHU 1205-AX |
| Cutting Diameter Maximum (DCX) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8.7 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 62 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with four 6 mm radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
2.921
