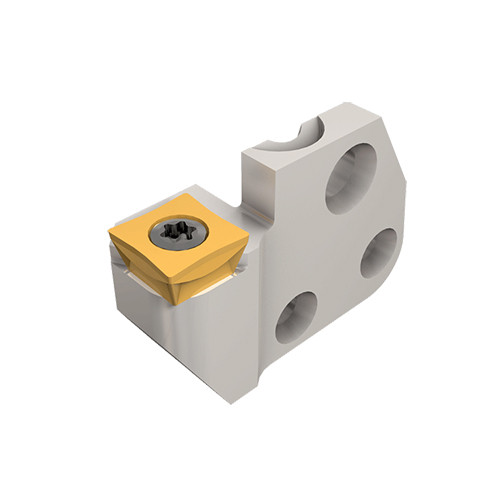

SUXCR-10 CM-PAD
| Overall Length (OAL) | 1.606″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 1.606″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0.291″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.38″ | Cutting Position | External |
| Cutting Direction (HAND) | Right Hand | Tool Type | Adapter Turning Tools |
| Master Insert Identification (MIID) | Q/C/S/RC95MT.. | Measurement Type | Inch |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Q#MG 95° Approach | Ext. 90°Square 45°Face&Turn Ap | Ext. Round Face & Turn | | Style | SCLCL08-3A |
Product Features
| Family Description | Screw lock adapter for four different 7° clearance geometries. CHAMTURN - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
Shipping Info
Package Weight
0.143
