F86LNX D050-06-22-R-N11

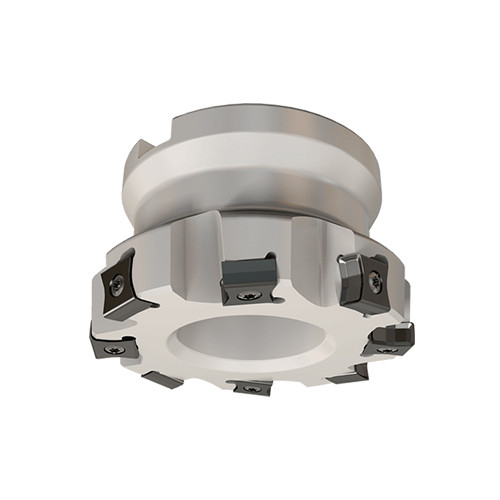

Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 3 mm LOC ; 6 Inserts ; 86 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | LNKX 1106PN-N MM |
| Cutting Diameter (DC) | 52.48 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3 mm | Application | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 86 Degrees |
| Hub Diameter (DHUB) | 47 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 86° face mills carrying all 8 cutting edges of LN..1106... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For APMX>3 mm, Zeff is half the number indicated (see More Info) LNAR 1106 inserts should not be used on these cutters F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1106.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position Feed should be limited to 0.25 mm/tooth |
Shipping Info
Package Weight
1.118
