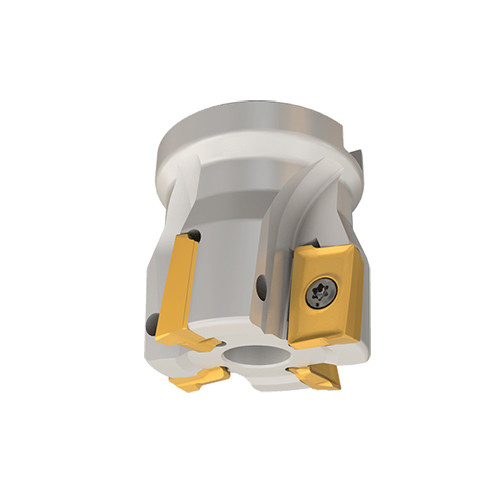

3M F90AX D050-22-20
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 20 mm LOC ; 4 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | 3M AXKT 2006PDTR-RM |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | Heavy duty 90° face mills carrying 3M AXKT 206.. inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Germany |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece. |
Shipping Info
Package Weight
1.190
