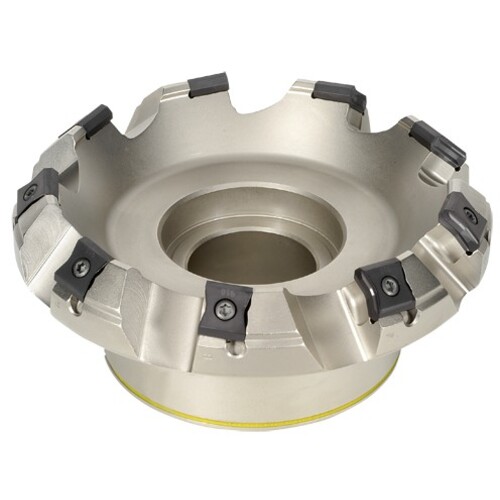

F45LN D160-12-40-L-N15
Indexable Face Mill; 180 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 7.5 mm Max Depth ; 12 Inserts
| Cutting Diameter (DC/DCX) | 180 mm | Master Insert Identification (MIID) | LNKX 150608AN-N PL |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 180 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Left Hand |
| Depth of Cut Maximum (APMX) | 7.5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 120 mm | Tool Type | 45° Facemills |
| Arbor Style | C |
Product Features
| Family Description | TANGMILL, 45° face mills with LN..1506... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Note: left-hand cutters are designated by a red groove |
Shipping Info
Package Weight
11.111
