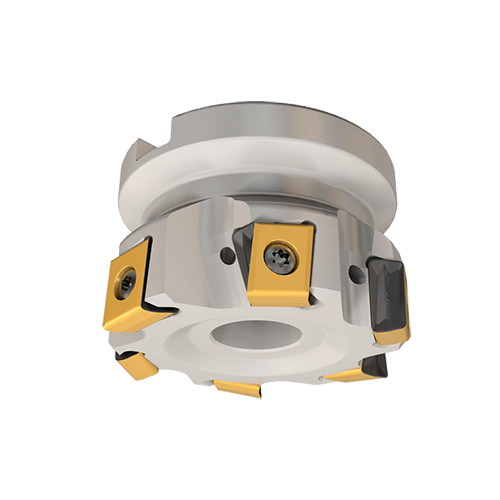

T490 FLN D063-06-22-R-13
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 12.5 mm LOC ; 6 Inserts ; 90 Degrees

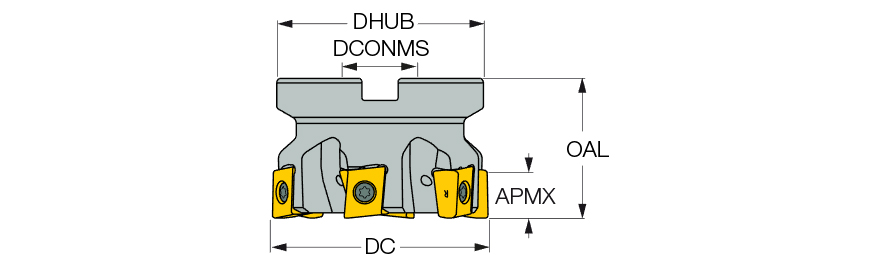

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 59.2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical 13mm long cutting edges. | Country of Origin | Israel |
| Remarks | When machining slots, coarse pitch cutters should be used. |
Shipping Info
Package Weight
1.618
