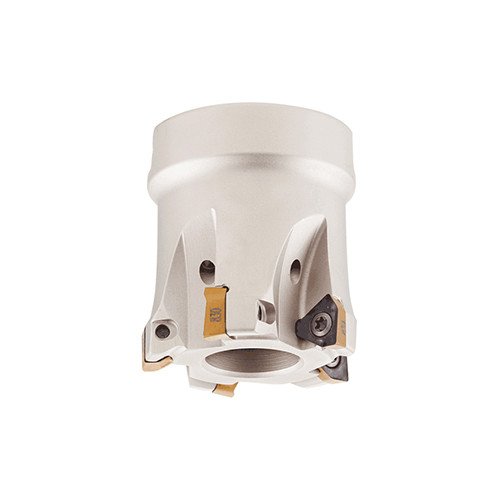

HM390 FTC D032-5-16-07
Indexable Face Mill; 32 mm Dia. × 16 mm Shank Dia. × 35 mm OAL × 5 mm LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | HM390 TCKT 0703PCTR |
| Cutting Diameter (DC) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 35 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 30.4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.522
