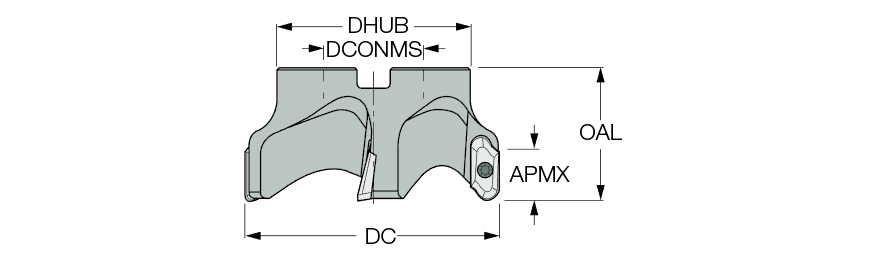

HM90 FAL-D050-22-22
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 20.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 55 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills For Al. & Hta |
Product Features
| Family Description | Face mills carrying HM90 APCR 2206... inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | D.O.C. changes according to insert radius ap 20.5 is the value for HM90 APCR220650 Insert tightening torque: 6 Nxm |
Shipping Info
Package Weight
1.2700
