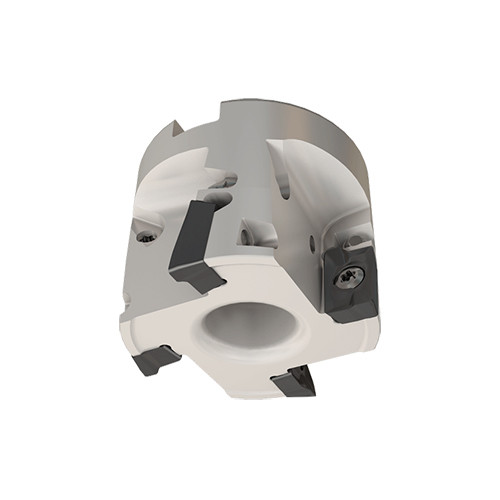

F90AD D063-04-22-SFR
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 2 mm LOC ; 4 Inserts ; 90 Degrees

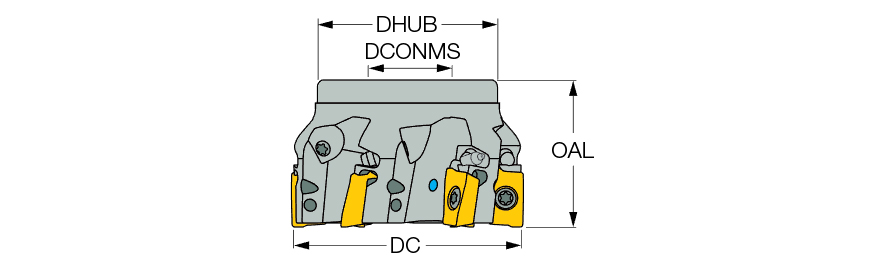

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | ADKW 1505 PDER |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features

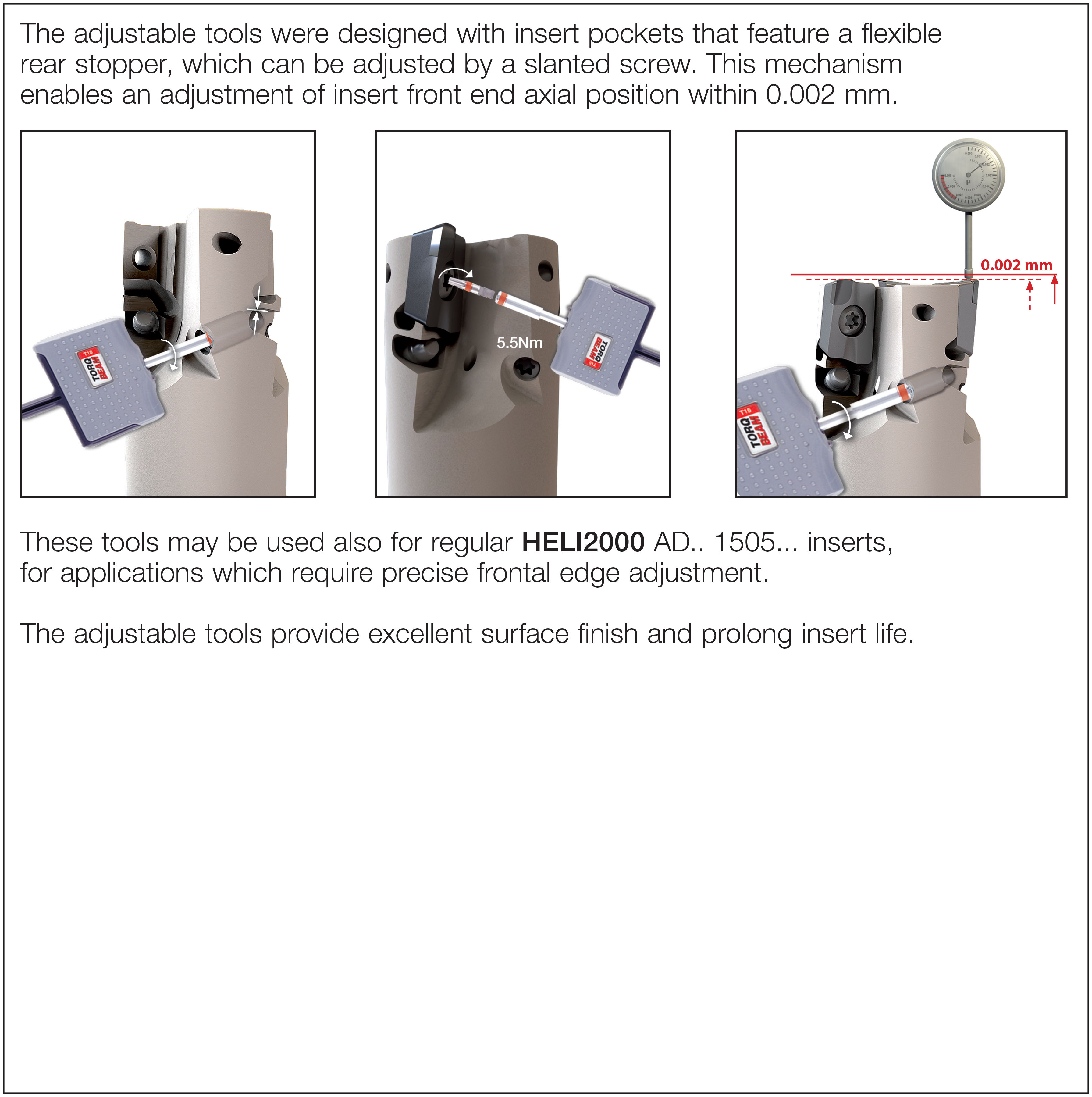

| Family Description | Adjustable face mills (used mainly for PCD/CBN inserts). The adjustable tools provide excellent surface finish and prolong insert life. | Country of Origin | Israel |
| Remarks | These tools may also be used for regular HELI2000 AD.. 1505... inserts, for applications that require precise frontal edge adjustment For adaptation, click on More Info |
Shipping Info
Package Weight
1.287
