F45WG D200-12-60-FX-R08
Indexable Face Mill; 8.346″ Dia. × 2.362″ Shank Dia. × 2.48″ OAL × 0.22″ Max Depth ; 12 Inserts

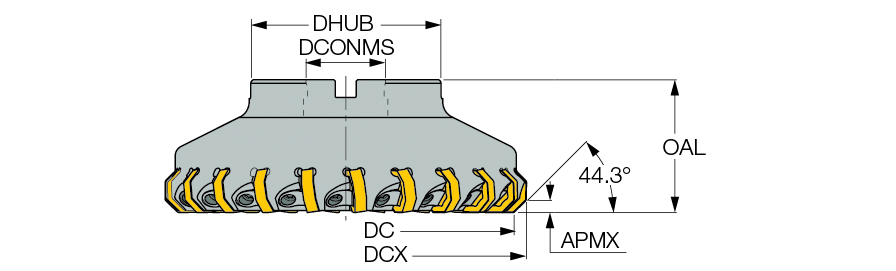

| Cutting Diameter (DC/DCX) | 212 mm | Master Insert Identification (MIID) | ONHU 080608-TN |
| Cutting Diameter (DC) | 200 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 212 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5.5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 44.3 Degrees |
| Hub Diameter (DHUB) | 0 mm | Tool Type | 45° Facemills |
| Arbor Style | C |
Product Features
| Family Description | Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed. | Country of Origin | Israel |
| Remarks | Note: Recommended wedge clamping torque: 8.5-9.0 Nxm |
Shipping Info
Package Weight
18.755
