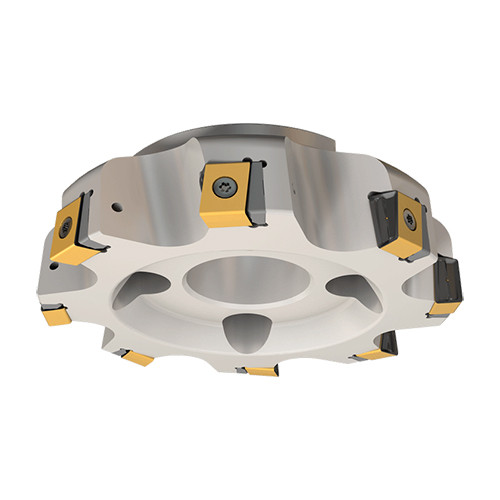

T490 FLN D200-08-60R-22ST

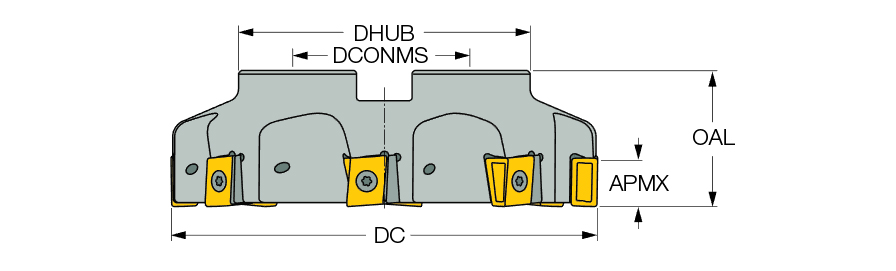

| Cutting Diameter (DC/DCX) | 200 mm | Master Insert Identification (MIID) | T490 LNHT 2212-PNTR |
| Cutting Diameter (DC) | 200 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 135 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | C | Tool Type | 90° Facemills |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills carrying T490 LNMT 2212 tangentially clamped inserts with 4 helical 21 mm long cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
5.512
