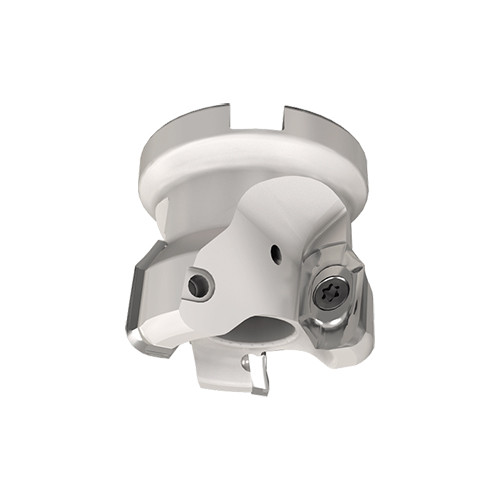

HM90 FAL-D050-22-16BR
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 45 mm OAL × 15.5 mm LOC ; 3 Inserts ; 90 Degrees

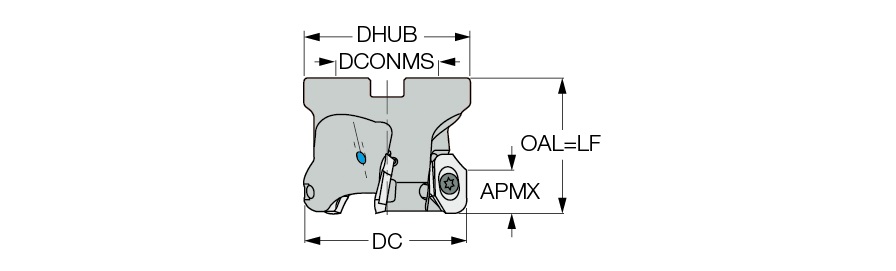

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HM90 APCR 160550R-P |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 15.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 45 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 49 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | Face mills carrying HM90 APCR 1605... inserts with corner radii equal to or larger than 5 mm, for machining aluminum | Country of Origin | Israel |
| Remarks | Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools Insert tightening torque: 6 (Nxm) |
Shipping Info
Package Weight
1.014
