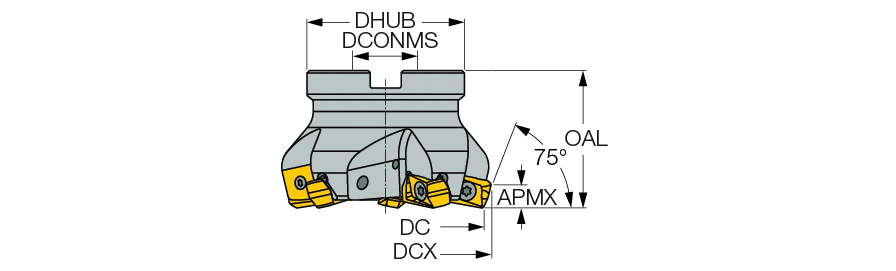

H490 F75AX D080-5-27-17
| Cutting Diameter (DC/DCX) | 84.5 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 84.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 55 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 70°-75° Facemills |
| Arbor Style | B |
Product Features
| Family Description | HELIDO, 75° face mills with H490 ANKX 17... inserts. The tool can use the otherwise unused insert corners from the H490 90° tools. | Country of Origin | Israel |
Shipping Info
Package Weight
.0020
