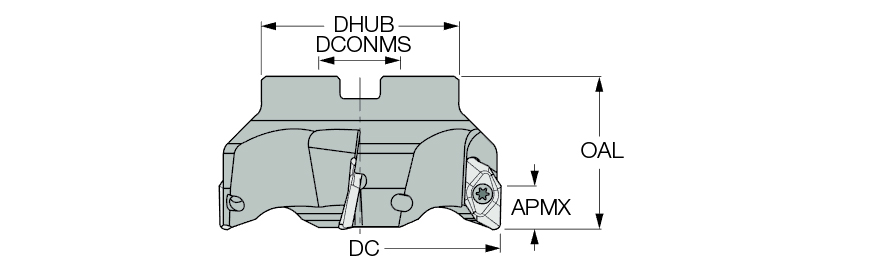

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | HM90 APCR 160520R-P |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 15.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 55 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 70 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills for Al. & HTA |
Product Features

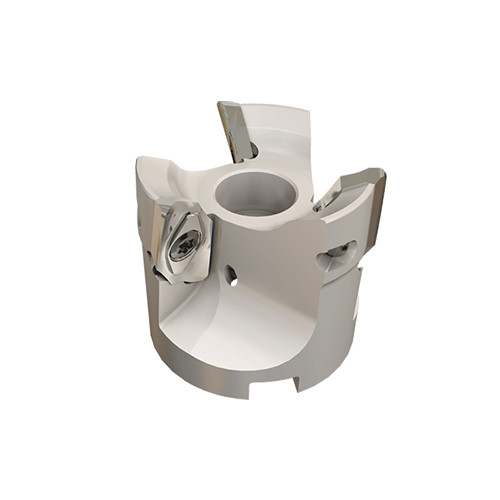

| Family Description | Face mills carrying HM90 APCR 1605... inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | Insert tightening torque: 600 Nxcm HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be used only on BR tools |
Shipping Info
Package Weight
3.710
