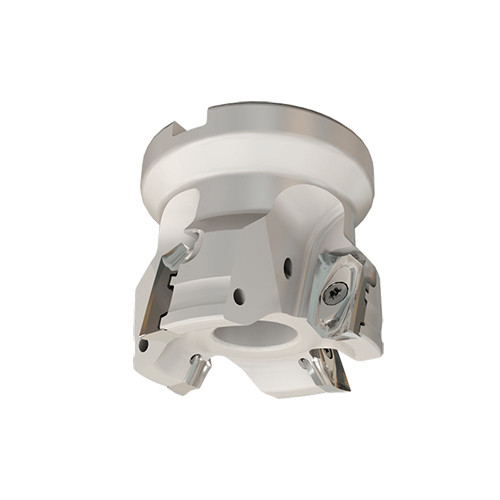

HM90 FAL-D2.00-4-.75-15
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1-3/4″ OAL × 0.551″ LOC ; 4 Inserts ; 90 Degrees

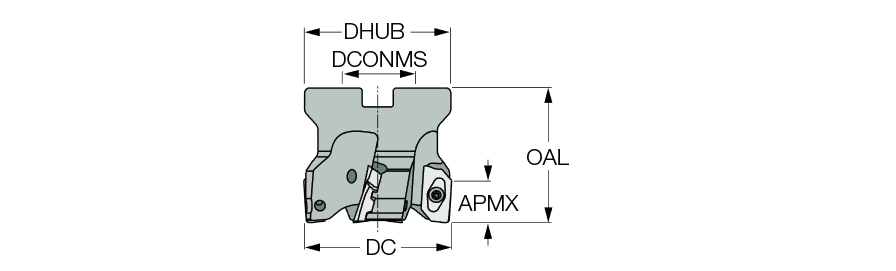

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HM90 AXCR 150502R-P |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.93″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | 90° face mills carrying HM90 AXCR 1505.. HELIALU inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .157, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 For adaptation, click on More Info |
Shipping Info
Package Length
5.50000
Package Width
2.80000
Package Height
2.70000
Package Weight
1.109
