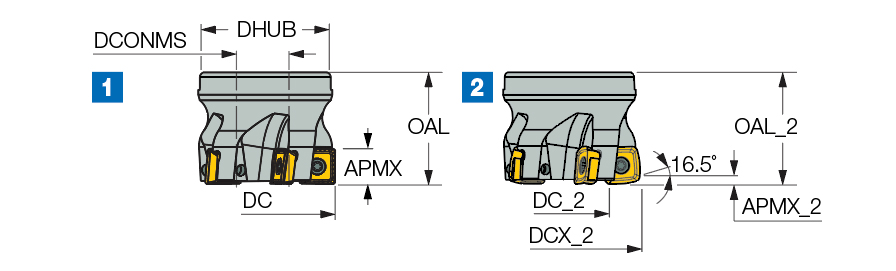

F90SD D6.00-2.00-16
| Cutting Diameter (DC/DCX) | 6″ | Master Insert Identification (MIID) | SDMT 1606PDR-HQ |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.602″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 4.33″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIQUAD, 90° face mills using SDMT 1606... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". Optional: 12T3.. inserts with TSD 12T3N seats. |
Shipping Info
Package Weight
7.346
Related Documentation
Cutter dia.3.0-6.0″ with 1205..inserts - use TSD 1205N seats. Optional: 12T3..inserts with TSD 12T3N seats.
