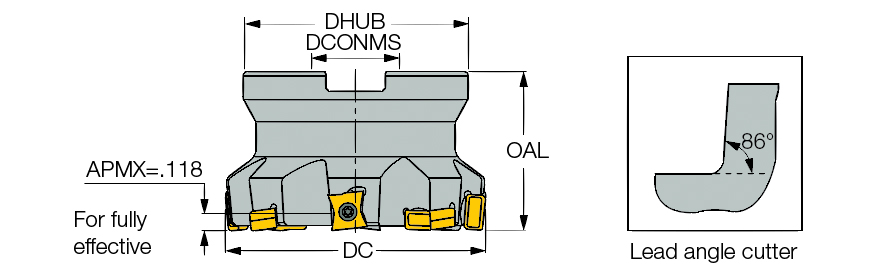

F86LNX D4.0-10-1.50-R-N15

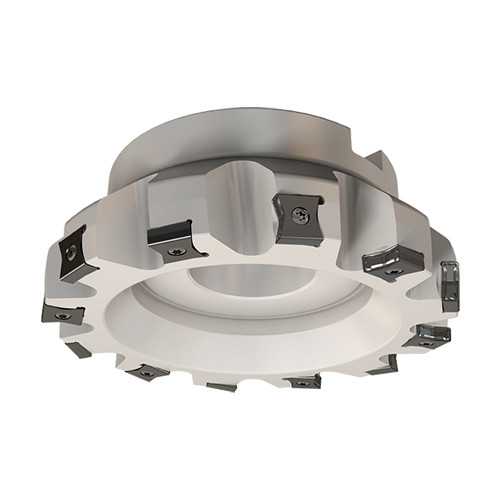

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 3″ LOC ; 10 Inserts ; 86 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.27″ | Tool Cutting Edge Angle (KAPR) | 86 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts. | Country of Origin | Israel |

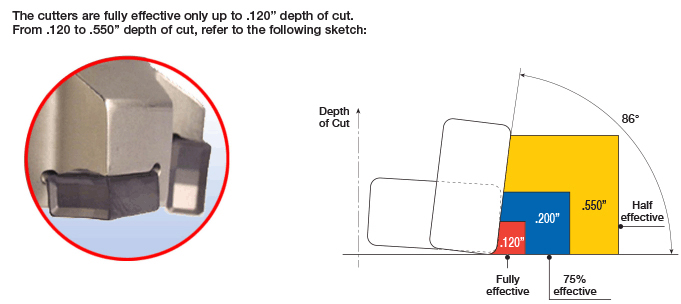

| Remarks | For ap>3.0 mm zeff is half the number indicated in the table. The F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1506.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position. |
Shipping Info
Package Weight
4.696
