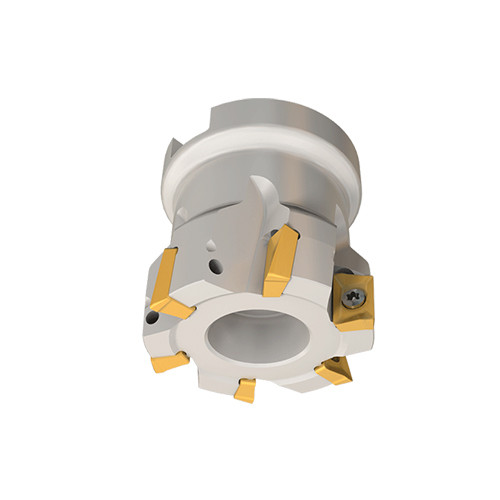

HM90 F90AP D80-8-27
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 49.63 mm OAL × 9.8 mm LOC ; 8 Inserts ; 90 Degrees

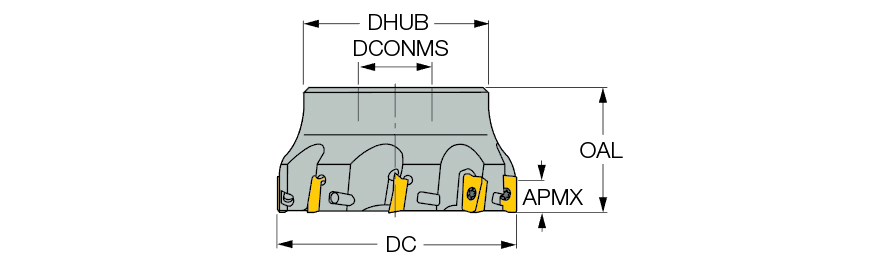

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9.8 mm | Application | | Counter Boring | Facing | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 70 mm | Tool Type | 90° Facemills |
| Arbor Style | B |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 APKT 1003... inserts. | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info |
Shipping Info
Package Weight
2.337
