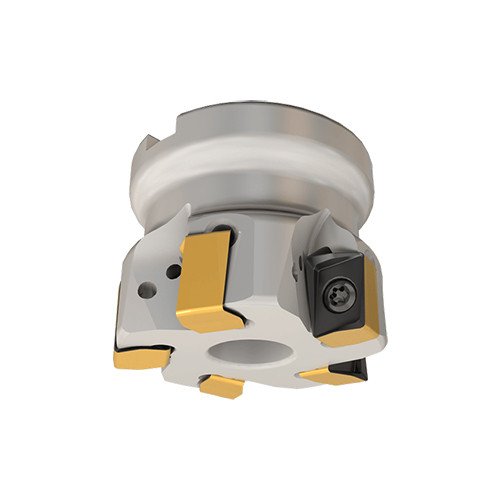

H490 F90AX D2.00-5-.75-12
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.472″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | H490 ANKX 1205PNTR-R |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.472″ | Application | | Facing | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.575″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.89″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying H490 ANKX/CX 1205... double-sided inserts with 4 helical, .47″ long cutting edges. | Country of Origin | Israel |

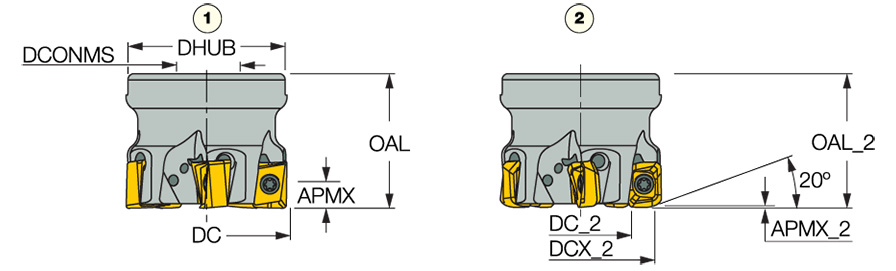

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
1.179
