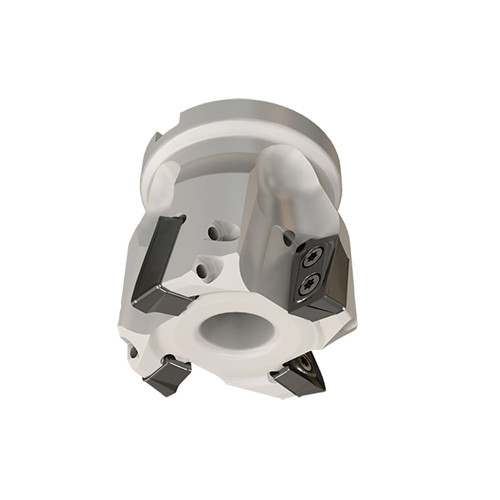

HP F90AT D3.00-6-1.00-19
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.713″ LOC ; 6 Inserts ; 90 Degrees

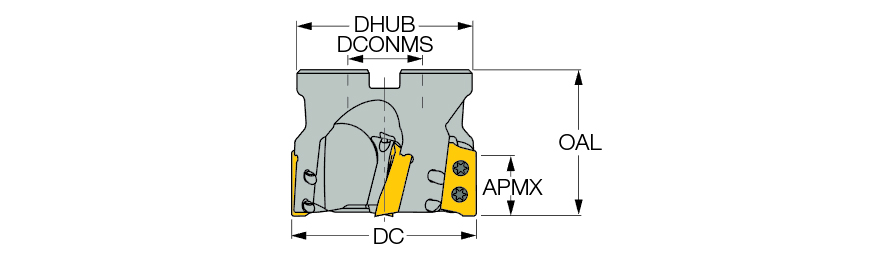

| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | HP ADKT 190608PDTR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.713″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.33″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HP AD.. 1906... long edged inserts. | Country of Origin | Israel |
| Remarks | Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both. |
Shipping Info
Package Weight
2.357
