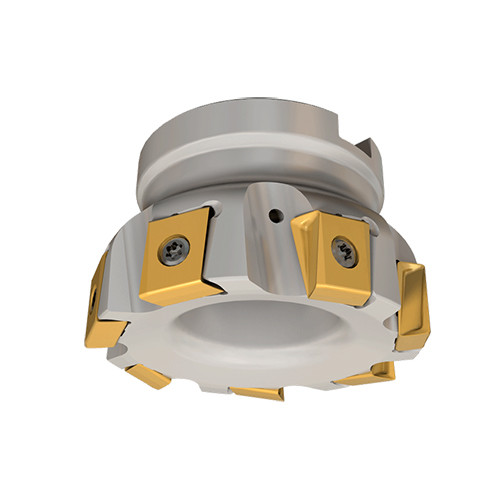

T490 FLN D125-10-40-16
Indexable Face Mill; 125 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 16 mm LOC ; 10 Inserts ; 90 Degrees

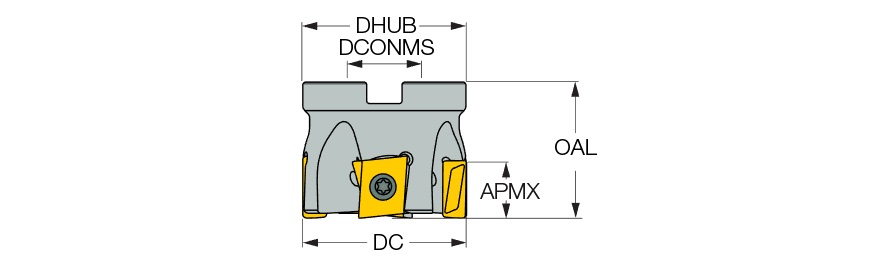

| Cutting Diameter (DC/DCX) | 125 mm | Master Insert Identification (MIID) | T490 LNHT 160708PNR |
| Cutting Diameter (DC) | 125 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 82 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 helical 16mm long cutting edges. | Country of Origin | Israel |
| Remarks | When machining slots, regular pitch cutters should be used. |
Shipping Info
Package Weight
6.252
