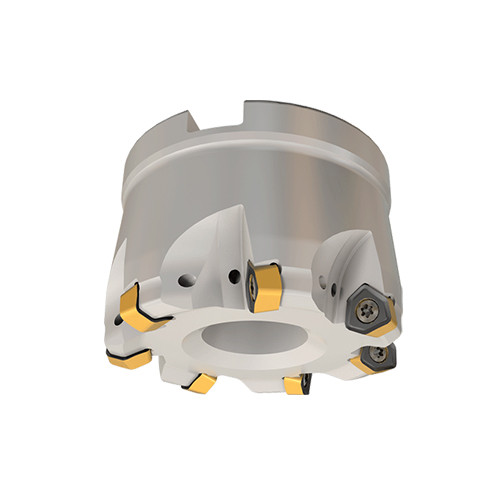

FF FWX D100-07-31.750-08
Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 63 mm OAL × 2 mm LOC ; 7 Inserts ; 17 Degrees

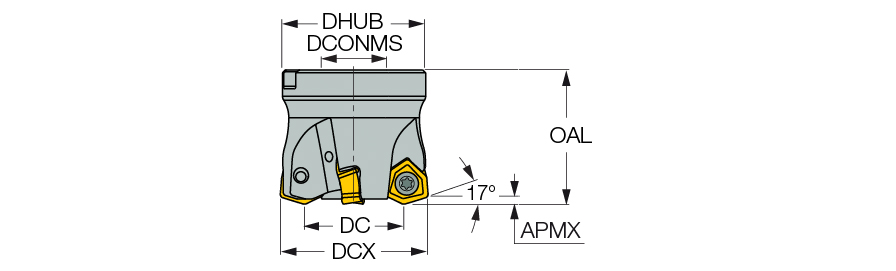

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | H600 WXCU 080612T |
| Cutting Diameter (DC) | 84 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 96 mm | Tool Type | Fast Feed Face mill |
| Arbor Style | B |
Product Features
| Family Description | Fast feed face mills carrying double-sided Inserts with 6 cutting edges (HELIDO UPFEED LINE) | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
6.027
