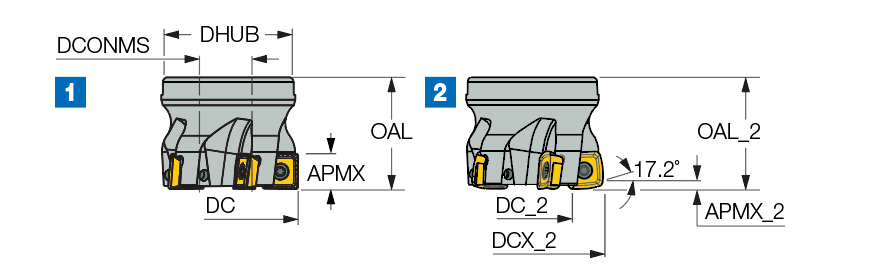

F90SP D4.0-1.50-FP10 *
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 11 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.38″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.15″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIQUAD, 90° face mills carrying S/X/QPMT 1004... inserts. | Country of Origin | Israel |
| Remarks | D is .008″ larger when QPMT inserts are used. |
Shipping Info
Package Weight
4.034
