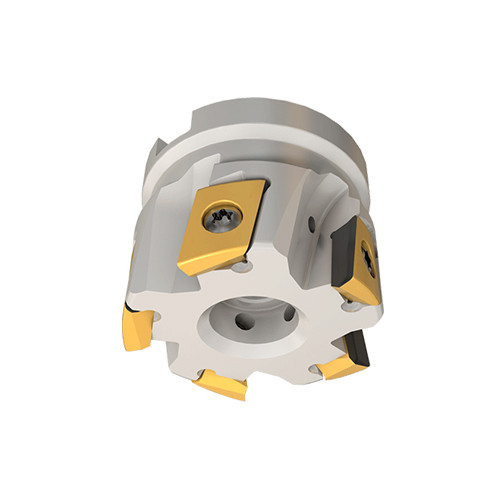

T290 FLN D050-05-22-15
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 14 mm LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | T290 LNMT 150608TR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying tangentially clamped, T290 LNMT 1506... inserts with 2 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.109
