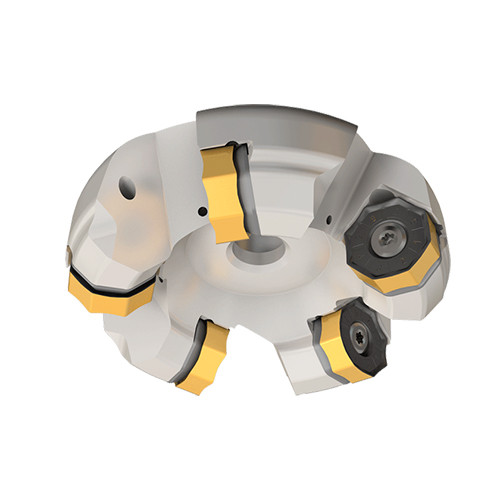

SOF45 D250-12-60-R26
Indexable Face Mill; 274.5 mm Dia. × 60 mm Shank Dia. × 63 mm OAL × 11 mm LOC ; 12 Inserts ; 45 Degrees

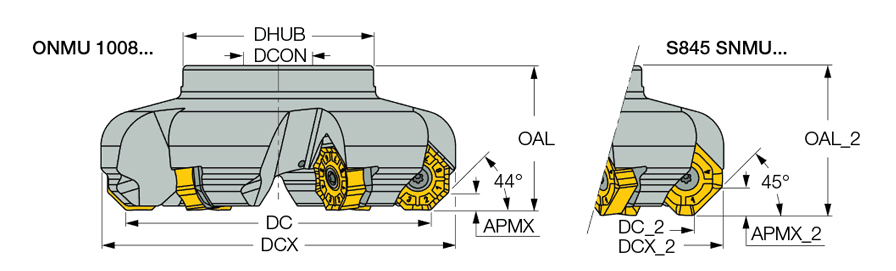

| Cutting Diameter (DC/DCX) | 274.5 mm | Master Insert Identification (MIID) | ONMU 100816-N-HL |
| Cutting Diameter (DC) | 254.1 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 274.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 60.8 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 135 mm | Tool Type | 45° Facemills |
| Arbor Style | C |
Product Features
| Family Description | Heavy duty 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
23.700
