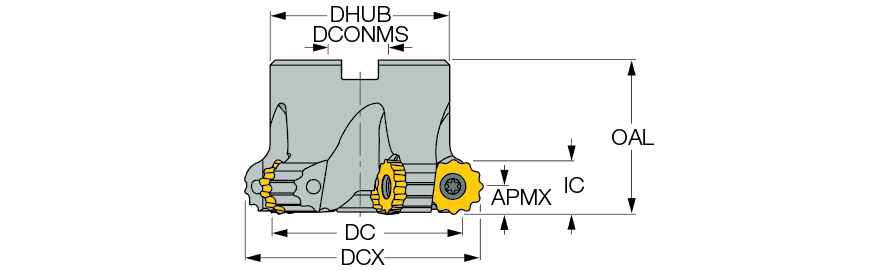

FRW D080A100-06-32-20
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 10 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 100 mm | Arbor Style | B |
| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | RCMT 2009MO |
| Cutting Diameter Maximum (DCX) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 70 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | MILLSHRED - Face mills carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
Shipping Info
Package Weight
2.800
