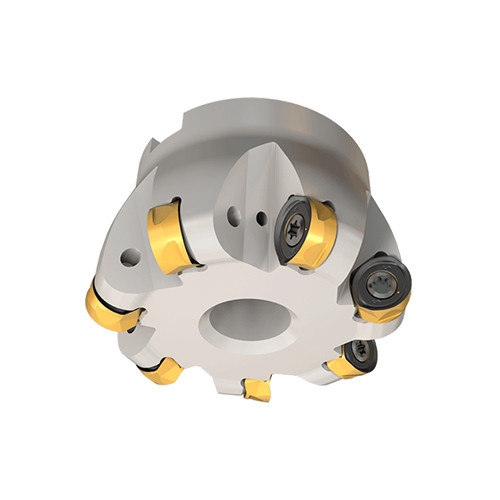

H400 FR D080-07-27-16
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 12 mm LOC ; 7 Inserts

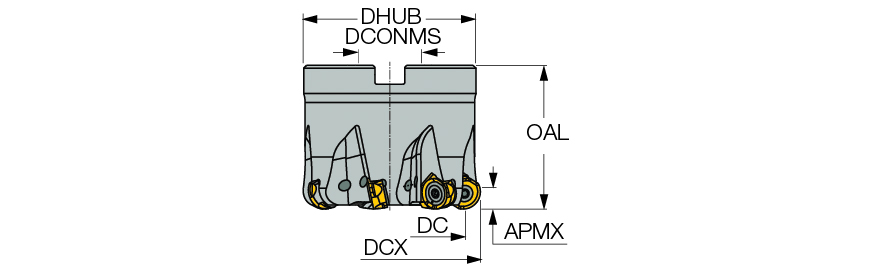

| Cutting Diameter (DC/DCX) | 80 mm | Arbor Style | A |
| Cutting Diameter (DC) | 64 mm | Master Insert Identification (MIID) | H400 RNHU 1606-AX |
| Cutting Diameter Maximum (DCX) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 63.6 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with four 8 mm radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
2.804
