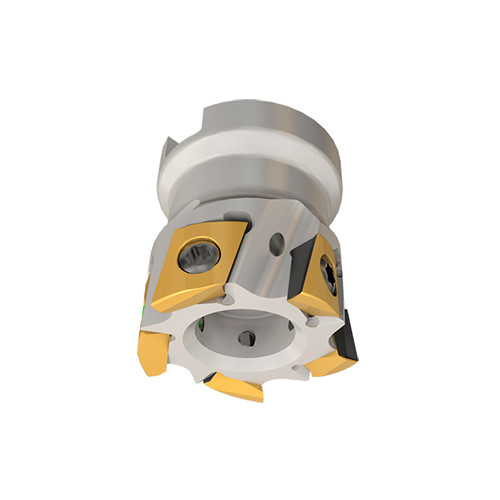

T290 FLN D40-06-16-10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 35 mm OAL × 9 mm LOC ; 6 Inserts ; 90 Degrees

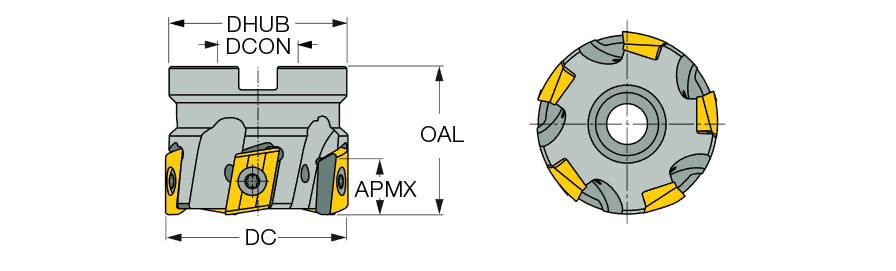

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | T290 LNHT 100405TR |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 35 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 34 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | SUMOMILL, 90° face mills carrying tangentially clamped, T290 LNMT/LNHT 1004... inserts with 2 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.703
