T465 FLN D160-09-40R-22ST
Indexable Face Mill; 183.2 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 19 mm LOC ; 9 Inserts ; 65 Degrees

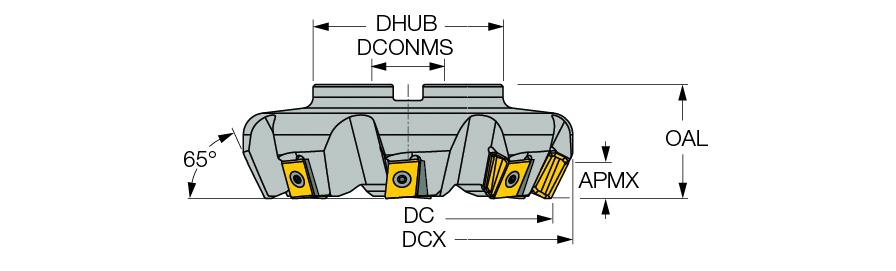

| Cutting Diameter (DC/DCX) | 183.2 mm | Master Insert Identification (MIID) | T465 LNHT 2212-ZNTR |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 183.2 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 19 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 120 mm | Tool Type | 60°-65° Facemills |
| Arbor Style | C |
Product Features
| Family Description | HELITANG T465 Line, 65° face mills carrying tangentially clamped inserts with 4, 22 mm long cutting edges. Used for machining large parts such as those found in marine industries, power generation and other heavy industry applications. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
12.994
