MF FWX D040-04-16-07
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 35 mm OAL × 2.7 mm LOC ; 4 Inserts ; 30 Degrees

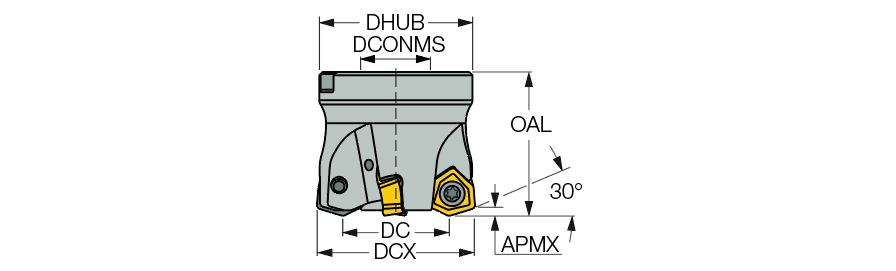

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | H600 WXCU 070515HP |
| Cutting Diameter (DC) | 27.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.7 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 35 mm | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Hub Diameter (DHUB) | 38 mm | Tool Type | Fast Feed Face mill |
| Arbor Style | A |
Product Features

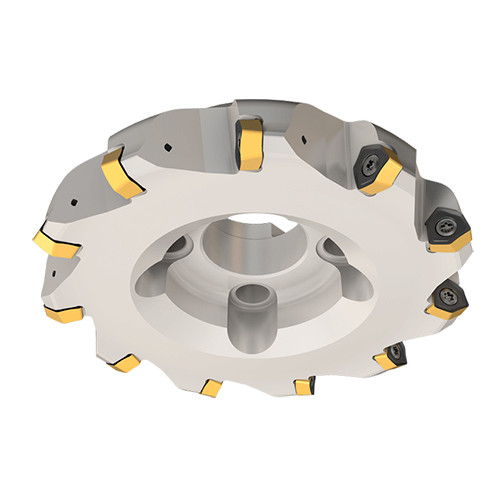

| Family Description | HELIDO UPFEED H600 LINE - moderate feed face mills carrying double-sided inserts with 6 cutting edges. | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.712
