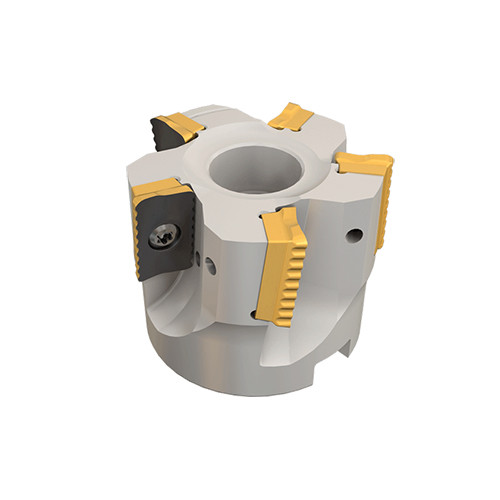

P290 FPW D063-06-22-18
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 18 mm LOC ; 6 Inserts ; 90 Degrees

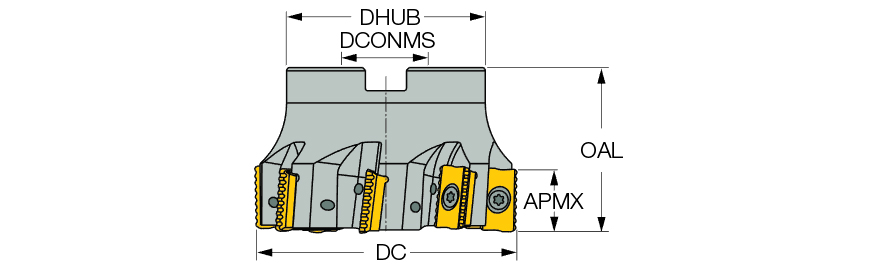

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Rampdown | Shouldering | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying 12 and 18mm long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.420
