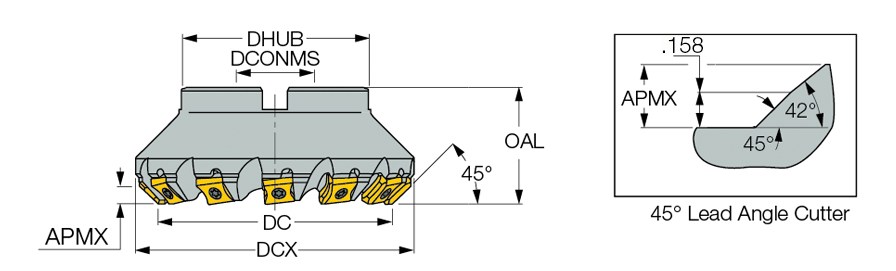

F45LN D5.00-09-1.50-R-N15
| Cutting Diameter (DC/DCX) | 5.79″ | Master Insert Identification (MIID) | LNKX 150608AN-N PL |
| Cutting Diameter (DC) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 5.79″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.3″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 3.74″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | TANGMILL, 45° face mills with LN..1506... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Note: left-hand cutters are designated by a red groove |
Shipping Info
Package Weight
7.937
