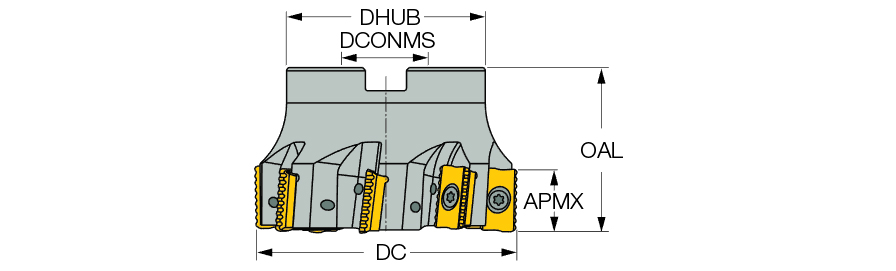

P290 FPW D4.00-9-1.5-18
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 1.969″ OAL × 0.708″ LOC ; 9 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.708″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Rampdown | Shouldering | |
| Overall Length (OAL) | 1.969″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.17″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.790
