IQ845 FSYD2.5-05-1.00-R07
Indexable Face Mill; 2.87″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.18″ LOC ; 5 Inserts ; 50 Degrees

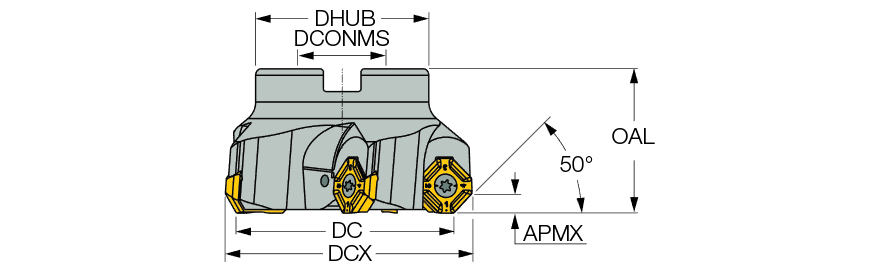

| Cutting Diameter (DC/DCX) | 2.87″ | Master Insert Identification (MIID) | IQ845 SYHU 0704ADN |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2.87″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.18″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Hub Diameter (DHUB) | 2.22″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 50° face mills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
Shipping Info
Package Weight
1.415
